Can I use these bags with my existing aseptic filler?
Compatibility must be checked against the actual filling head, spout design, bag size and handling setup. Please send your machine model and fitting details before ordering.
Aseptic Bags for Juice

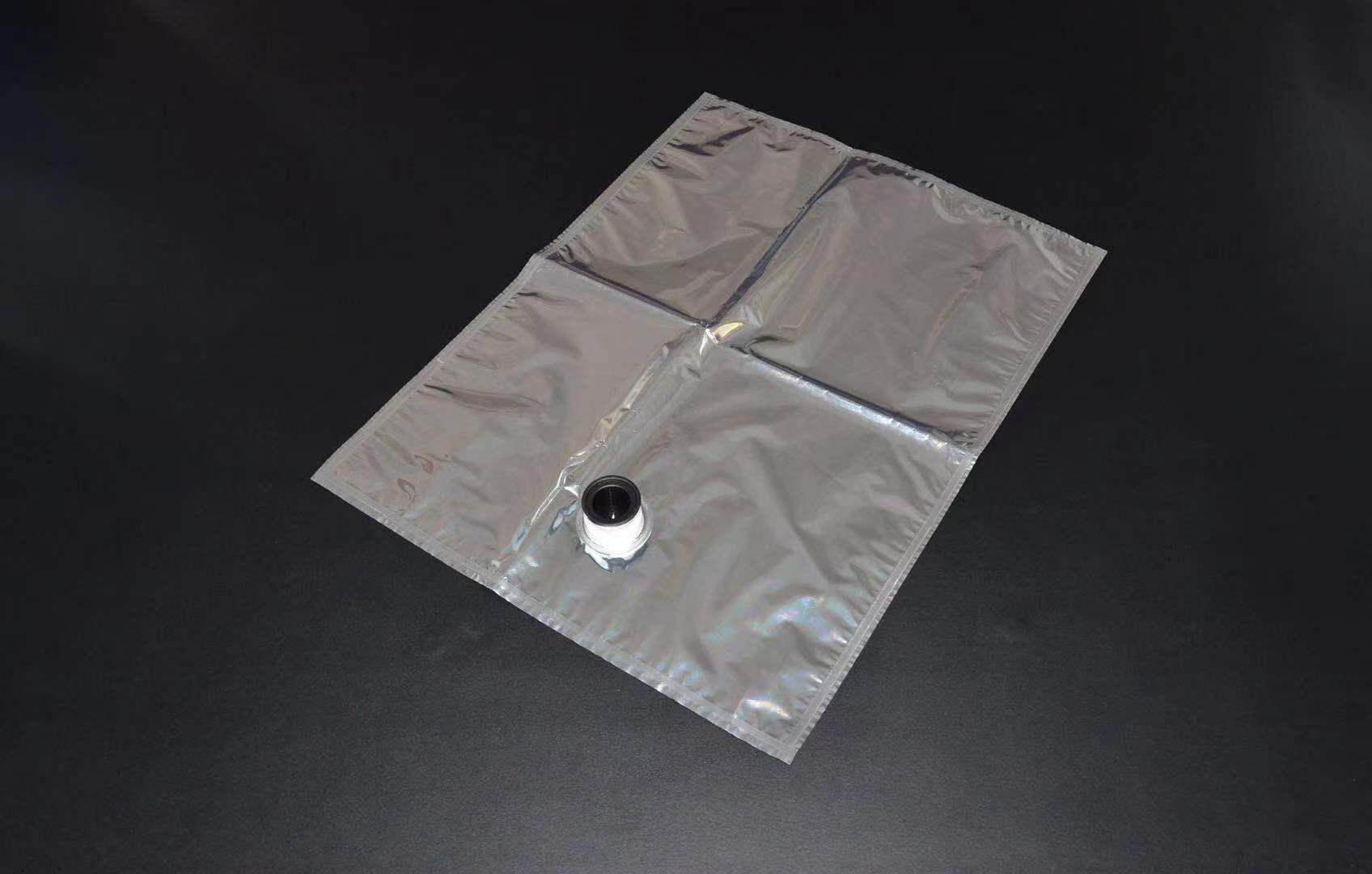

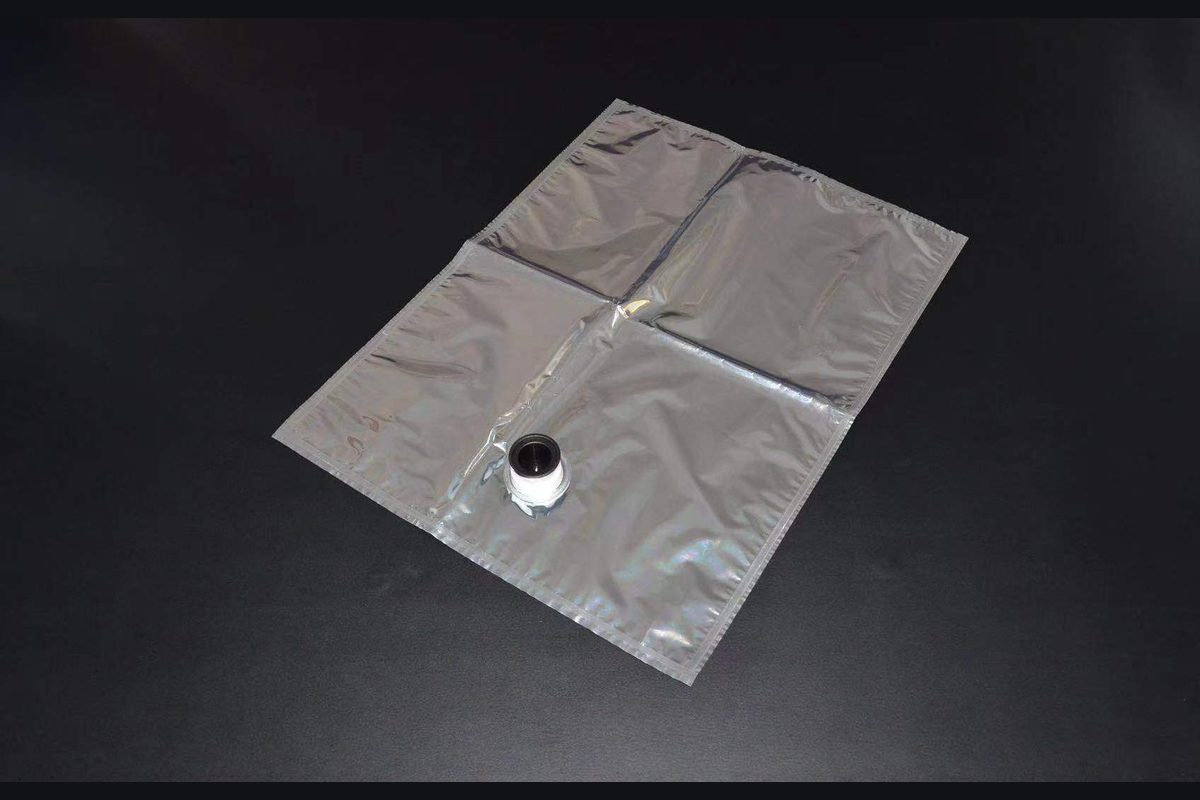

AGICO supplies flexible aseptic bags for juice, juice concentrate and fruit puree. They serve as inner packaging for small-format bag-in-box (BIB) and bulk liquid food applications. The supplier's stated capacity range is 2–220 L; the film, bag dimensions and filling spout must be selected for the product and filling line. A documented 220 L metallized bag is shown as a reference model below.
Why Choose AGICO Aseptic Bag in Box?
AGICO can supply aseptic bags alongside its filling equipment. The bag specification should be selected for the liquid, outer packaging and filling line; the verified 220 L model below provides a technical reference.
-
High-Barrier Film Selection
The documented 220 L metallized bag uses a VMPET composite layer with a stated oxygen transmission rate below 1.0 cc/m²/24 h. The filled product's shelf life must be validated separately.
-

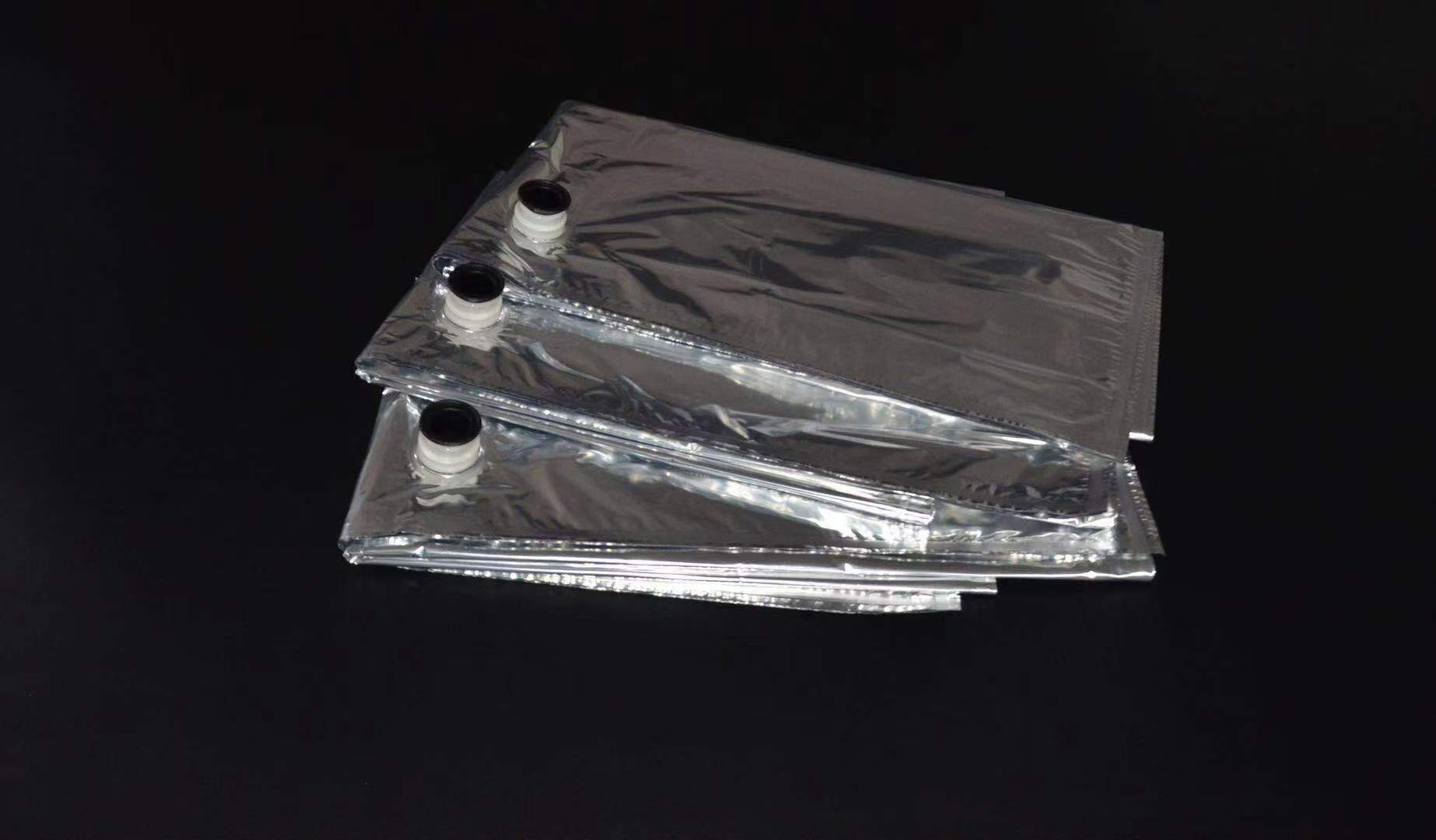

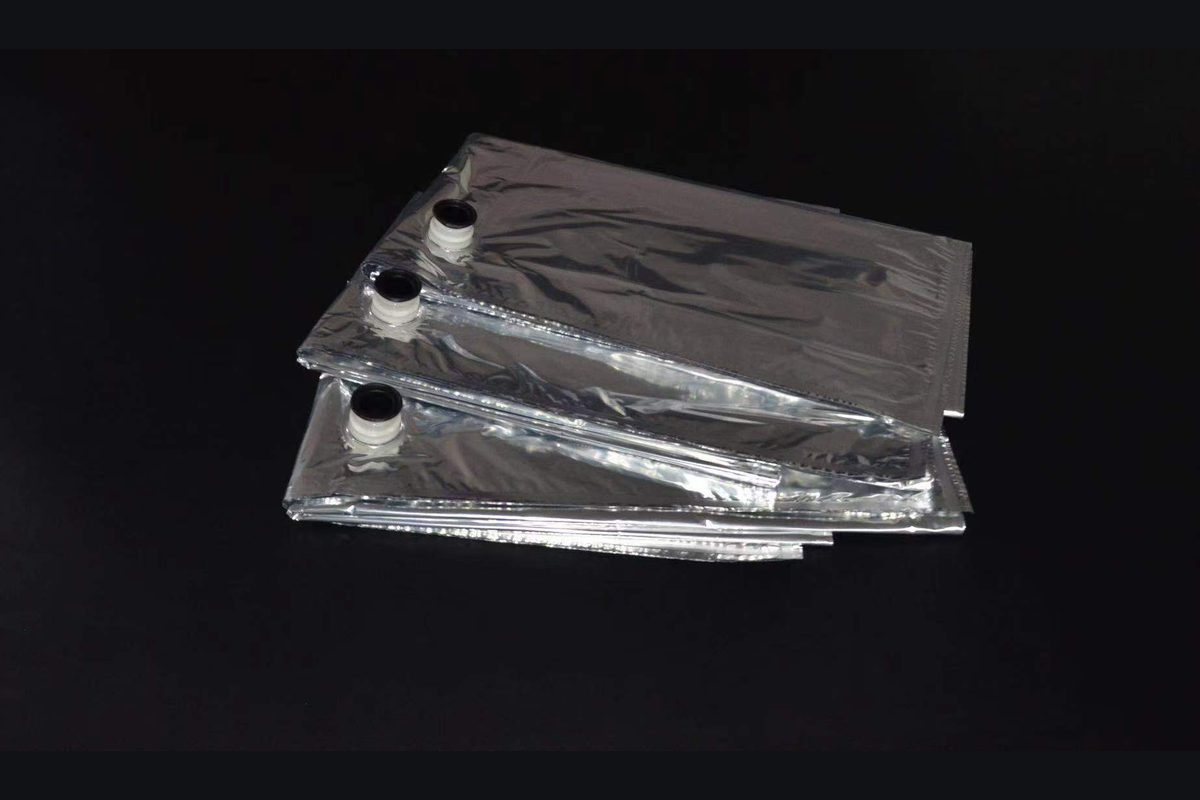

Space-Efficient Empty Bag Logistics
Flexible bags can be stored and shipped flat before filling. Confirm the required carton, drum or other outer container separately for the finished package.
-
Irradiated 220 L Reference Bag
The supplier specifies a 15 kGy irradiation dose for model FD17A220S. Irradiation and handling requirements for other bag configurations should be confirmed before use.
-
Filler and Spout Matching
Share the filler model, filling-head interface and desired bag size. AGICO can check the proposed spout and bag configuration against the filling process before quotation.
Aseptic Bag Applications for Juice, Fruit Puree and Other Liquids
Aseptic bags can be configured for juice, fruit puree and other liquids in the three application groups below. Film structure, spout and outer packaging are selected for each liquid and filling process; the 220 L technical table on this page applies to model FD17A220S. For the broader juice processing workflow, see AGICO's fruit juice production line.
-

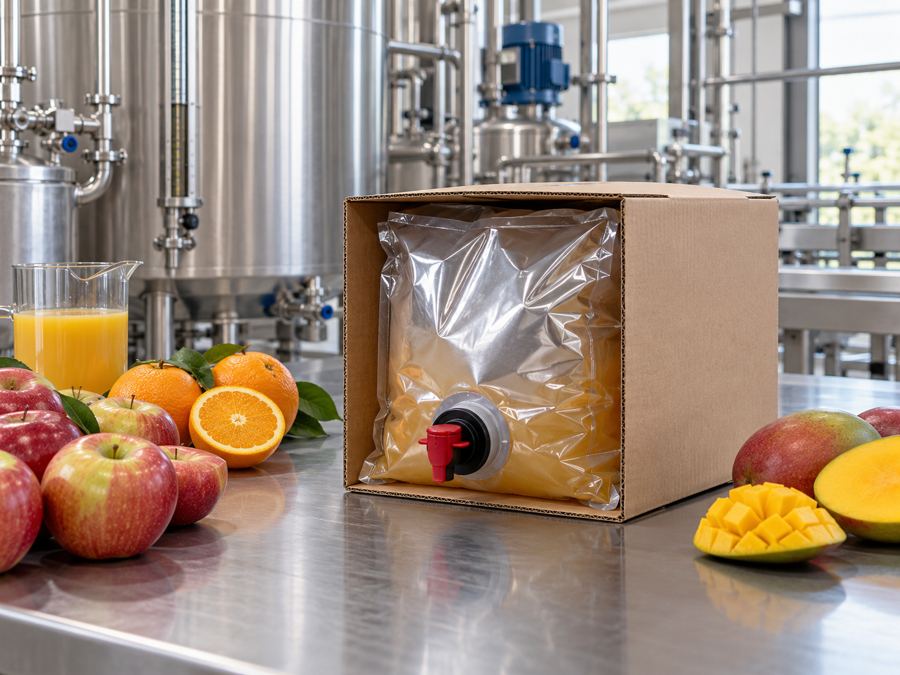

Juice and Fruit Puree
Examples include orange and apple juice, NFC juice, concentrate and fruit puree. Confirm the bag film and filling fitting for the product, whether it is packed for bulk handling or in a smaller BIB format.
-

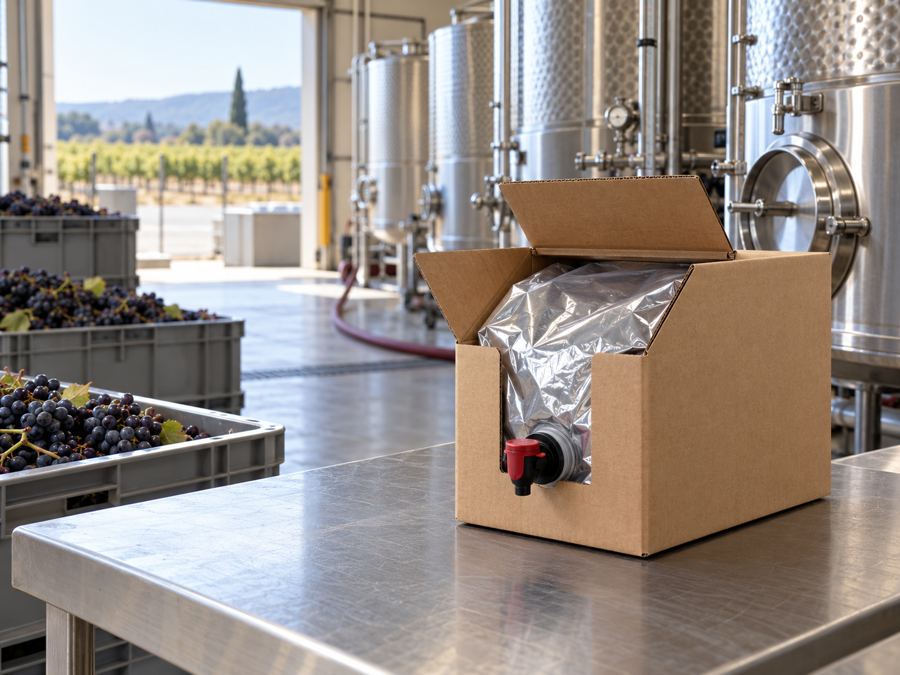

Wine and Fermented Beverages
Wine and cider are listed among the supplier’s BIB applications. Select the barrier film and dispensing tap for the beverage and process; shelf life depends on the validated filled package and storage conditions.
-

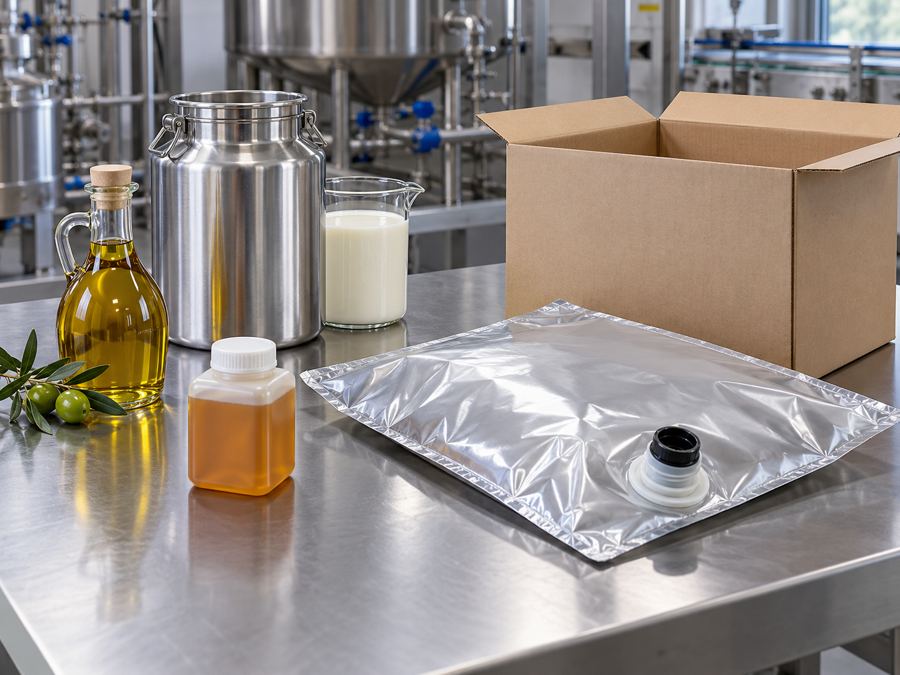

Edible Oils, Dairy and Other Liquids
Examples also include edible oils, dairy, food additives and selected non-food liquids. Each use needs its own film, spout and applicable material documentation confirmed before ordering.
Application images are illustrative. Available film, fitting and outer packaging are confirmed for each order.
Aseptic Bag Capacities and Film Options
The supplier lists aseptic bag capacities from 2 to 220 L, including metallized, aluminum-foil and transparent bag options. Availability and performance vary by configuration; confirm the selected capacity, film and spout before placing an order.
| Bag option | Capacity | What to confirm |
|---|---|---|
| Small-format bags for BIB packaging | 2–25 L | Specific size, film and dispensing fitting |
| Bulk aseptic bags | 220 L documented model | Dimensions, outer container and filling spout |
| Custom configurations | On request | Capacity, film structure and spout design |

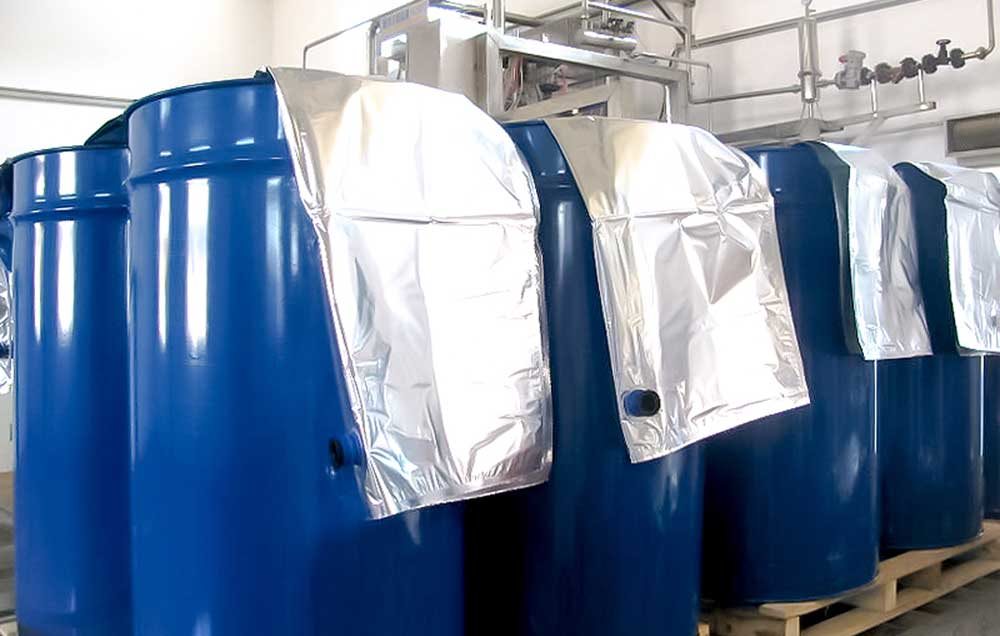

Example of flexible bag liners used with outer drums; configuration is subject to confirmation.
What Is Bag-in-Box (BIB) Packaging?
Small-format BIB bags are flexible inner bags used with outer cartons and suitable filling or dispensing fittings. Bulk aseptic bags use a larger flexible inner bag with an appropriate outer handling container. With a suitable dispensing tap, the flexible bag can collapse as liquid is drawn. This page describes the bags; ask us to specify any carton, drum or other outer packaging separately in the quotation.

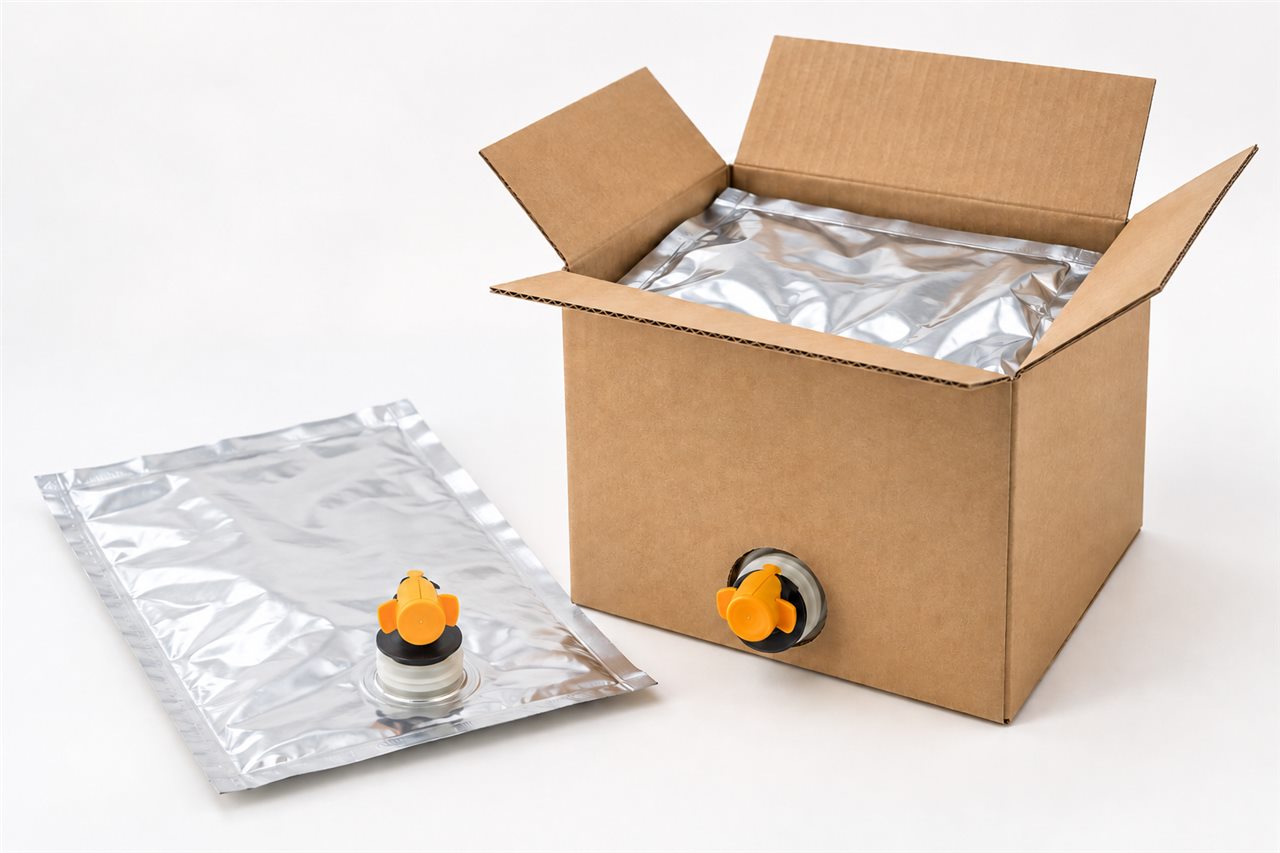

Bag-in-box packaging illustration. Confirm the supplied carton and fitting for your order.

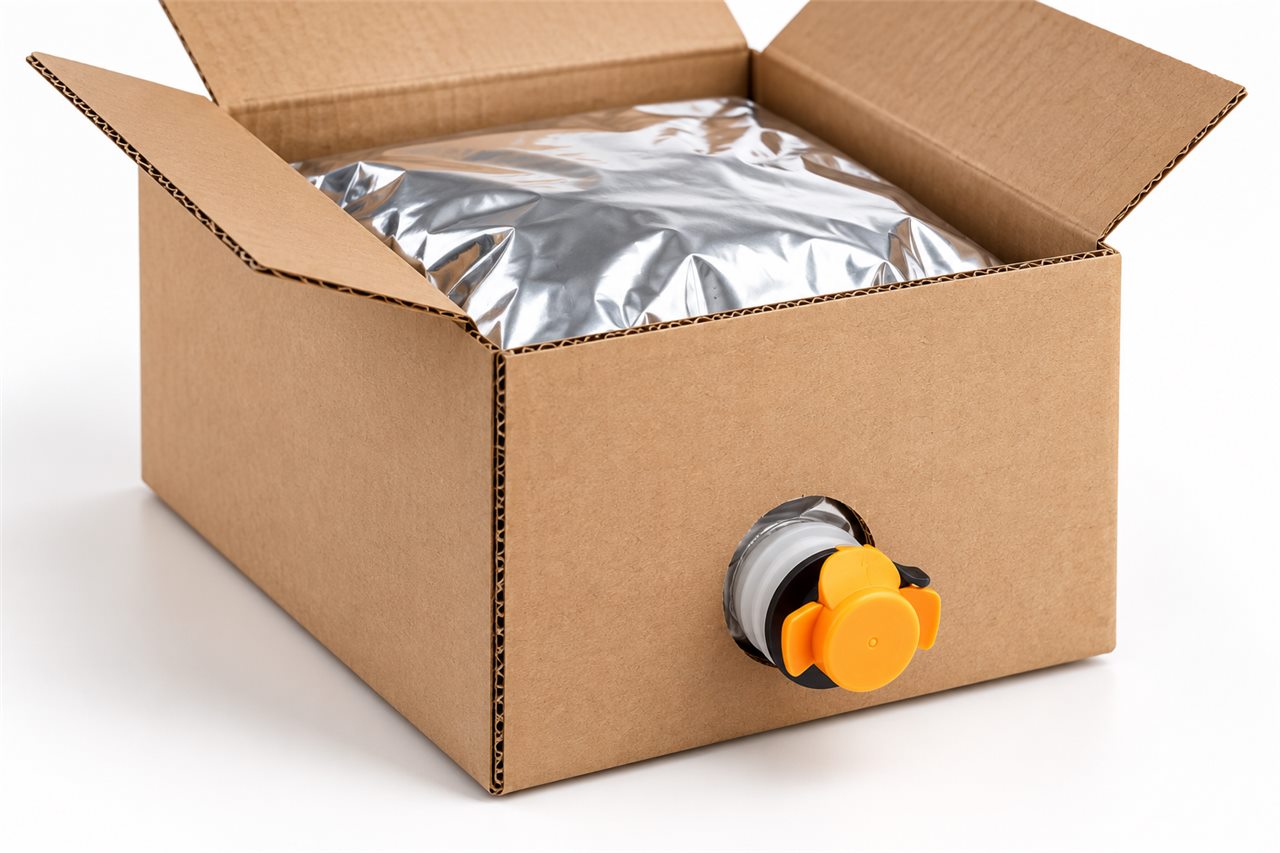

Illustrative tap arrangement; fitting details are subject to confirmation.
Material Structure & Available Types
The documented 220 L model uses a metallized VMPET composite outer film and separate LLDPE inner layers. Its stated oxygen transmission rate is below 1.0 cc/m² per 24 hours. This is a film specification, not a promised shelf life for filled juice. Other film options mentioned by the supplier include aluminum foil and transparent structures; request the corresponding specification before selecting one.
Material Functions in the Documented 220 L Aseptic Bag
- VMPET: metallized polyester film in the outer composite provides the specified barrier layer.
- LLDPE: flexible polyethylene layers form the outer composite and the separate inner film layers used for sealing.
Available Film Types
- Metallized composite: documented for the 220 L reference model FD17A220S.
- Aluminum-foil and transparent bags: listed in the supplier range; ask for the specification of the required size and structure.
220 L Metallized Aseptic Bag Specifications
The following data apply only to supplier model FD17A220S. Other bag sizes and film types require their own confirmed specifications.
| Parameter | FD17A220S specification |
|---|---|
| Nominal capacity | 220 L |
| Internal dimensions | 1560 × 920 mm (each dimension ±10 mm) |
| Overall dimensions | 1580 × 940 mm (each dimension ±10 mm) |
| Outer composite | LLDPE 35 / VMPET 12 / LLDPE 55 |
| Separate inner layers | LLDPE 50 / LLDPE 50 |
| Oxygen transmission rate | <1.0 cc/m²/24 h (test conditions not stated in the supplied sheet) |
| Heat-seal strength | >40 N/15 mm |
| Irradiation dose | 15 kGy |

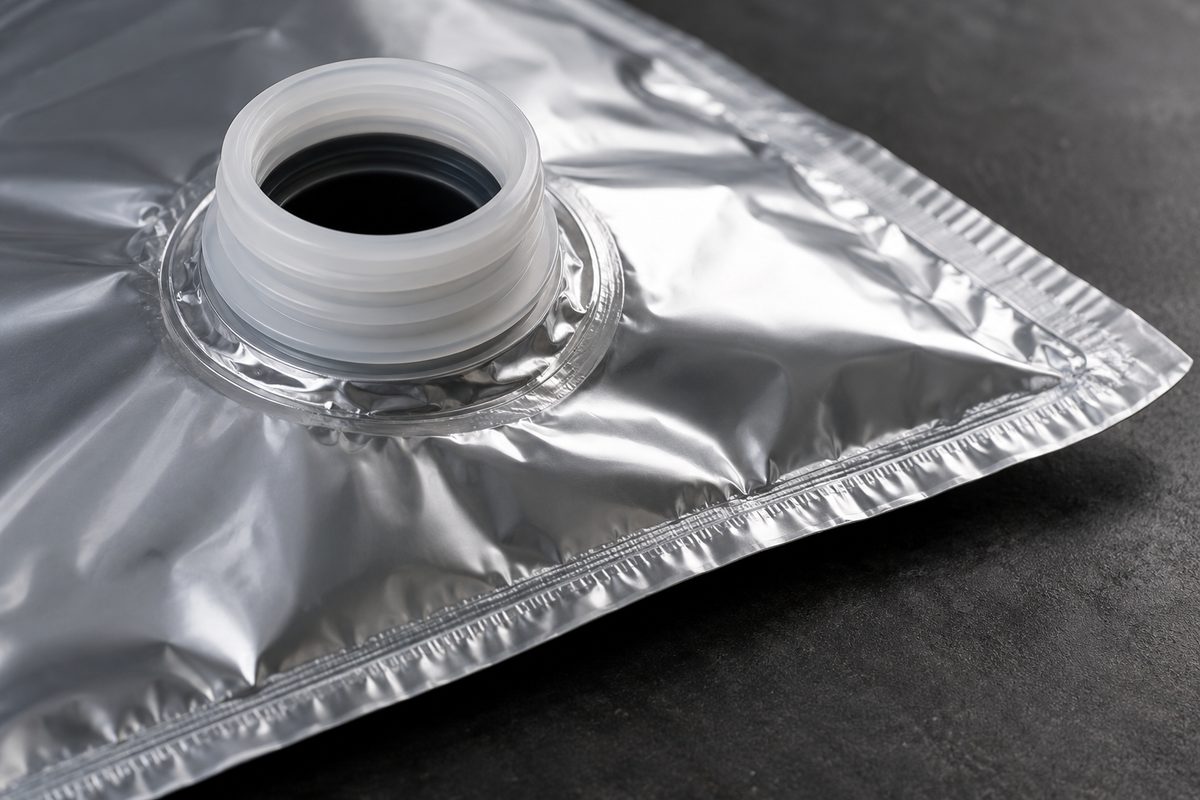

| Filling fitting | Aseptic valve; confirm exact interface before ordering |

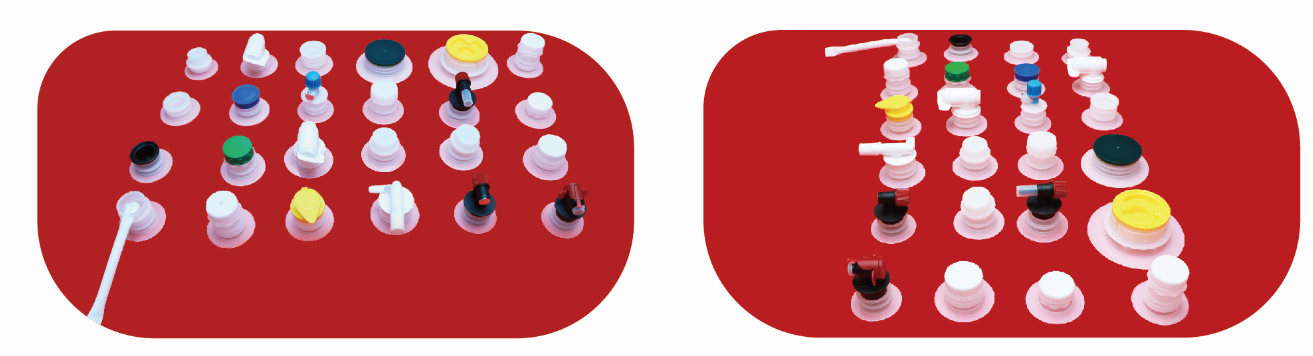

Valve & Spout Options
The supplier shows several aseptic bag fitting styles for filling and dispensing. The examples below are options within its wider range; they are not all confirmed for the documented 220 L bag.
- Aseptic caps: black-and-white and blue-and-white styles.
- Specialty valves: syrup, duckbill, butterfly, upright and sharp-spout styles.
- Dispensing taps: guide-tube milk, cola and Japanese-style lever styles; a chemical faucet is shown for suitable non-food applications.
Confirm fitting availability, food-contact suitability and the exact filling-head interface for the selected bag before ordering.

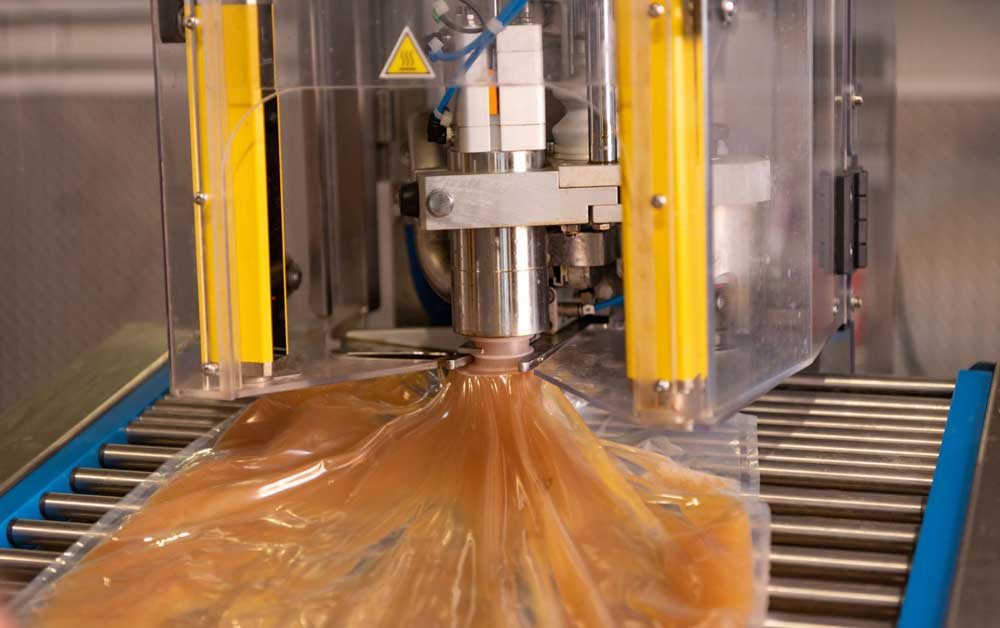

Aseptic Bag Spout and Filler Compatibility
A bag is suitable for a filling line only when its spout, cap, position and dimensions match the filling head and handling process. Send the filler model, filling-head details and a photo or drawing of the required fitting. AGICO can then check the proposed bag configuration before quotation. A matching capacity alone does not establish machine compatibility.
Related equipment: AGICO aseptic bag filling machine. Confirm the operating capacity and fitting of the specific machine before ordering bags.
Storage and Handling Before Aseptic Filling
For the documented 220 L model, the supplier specifies dry, dust-free storage at 15–25°C, away from direct sunlight, and recommends using the bags within 24 months of delivery. Keep the original packaging intact until the bags are needed, and inspect the film and fitting before use. Follow the filling line's validated aseptic procedure; the stated irradiation dose does not by itself define every on-site handling step.
Information Required for an Aseptic Bag Quotation
To help us identify a suitable bag, please send your liquid product and intended process, target bag capacity, filler model and filling-head details, required outer packaging, estimated order quantity and destination. If you need specific food-contact, irradiation or quality documents, list them in the same inquiry so their availability can be checked.
Frequently Asked Questions About Aseptic Bags
Do you supply only 220 L bags?
No. The supplier describes a wider 2–220 L range. The detailed technical figures on this page, however, apply only to the documented 220 L model FD17A220S; ask us to confirm specifications for other sizes.
Is an outer carton or drum included?
The flexible inner bag is the product described here. Tell us if you also need an outer carton or drum so the quotation can state exactly what is included.
How should I select the film and spout?
Share the liquid, filling process, desired bag size, outer container and filler interface. The supplier can then confirm an available film structure and fitting for review.
