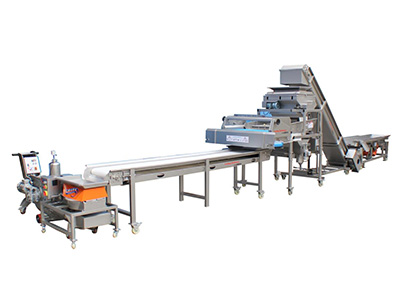

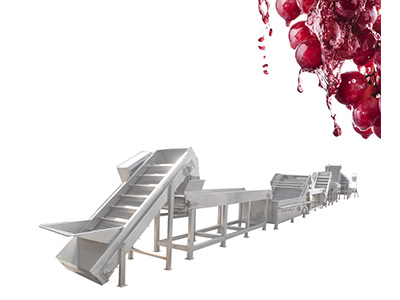

Grape Juice Processing Line

How to Make Grape Juice?

Grape juice is rich in glucose, minerals, and various vitamins, earning it the title "plant milk." It is the foundation for both fine wine-making and the production of healthy beverages. The AGICO grape juice processing line covers the entire process from raw material selection to finished product filling. We not only provide individual machines but can also offer a one-stop turnkey project, including entire plant design, equipment manufacturing, installation and commissioning, and after-sales service. The AGICO grape juice processing line is suitable for juice processing plants, wineries, and beverage companies.

Send Enquire Now

  WhatsApp

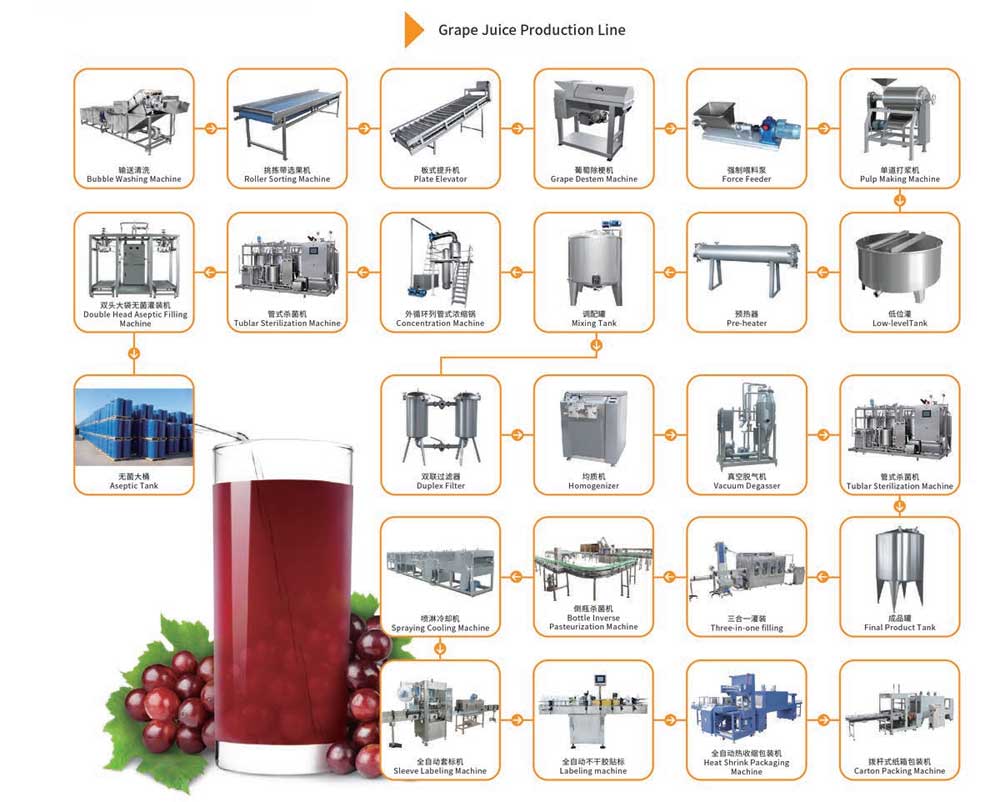

Process Flow of Grape Fruit Juicer Machine

1. Grape Fruit Selection and Cleaning
2. Destemming and Crushing
3. (Optional) Hot Maceration for Color Extraction
4. Juice Extraction (Pressing)
5. Coarse Filtration
6. Clarification and Blending
7. Sterilization and Filling

  raw materials—grape sorting—grape cleaning—desteming—crushing—heating for color distill—pressing—filtration—blending—clarification—heating—canning and sealing—sterilization—cooling
Contact us for product catalog

Core Equipment of Grape Juice Processing Line

Grape Vibrating Sorter

The AGICO Grape Vibrating Sorter utilizes advanced vibrating screening technology. Through high-frequency vibration and even material spreading, it effectively removes unripe, rotten grapes, as well as impurities like leaves, twigs, and stones mixed in. It completes the selection process without damaging the grape berries, ensuring a quality foundation for subsequent processing.

Grape Vibrating Sorter

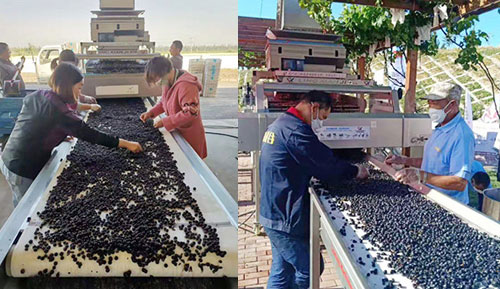

Grape Selecting

Fruit Surfing Washing Machine

Selected grapes enter the Fruit Surfing Washing Machine. This equipment uses tumbling water flow to gently scour the grape surface, thoroughly removing dust and residues while avoiding mechanical damage. It can be combined with a disinfectant solution soak, followed by a water spray rinse.

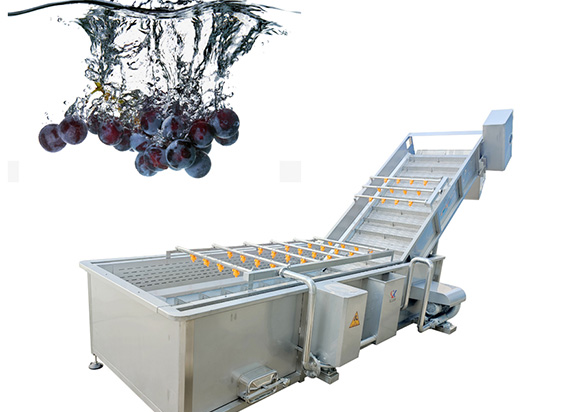

Grape Fruit Surfing Washing Machine

Grape Destemmer

Grape stems contain high levels of tannins and bitter compounds and must be removed. The AGICO Grape Destemmer utilizes eccentric, adjustable destemming blades. The rotation speed can be flexibly adjusted based on the grape variety, efficiently removing stems while maximizing berry integrity. The sieve drum is made from nylon or stainless steel, resistant to acids, alkalis, and corrosion, ensuring hygiene and safety. The crushing rollers are made from high-elasticity, non-toxic rubber, causing minimal damage to the pulp.

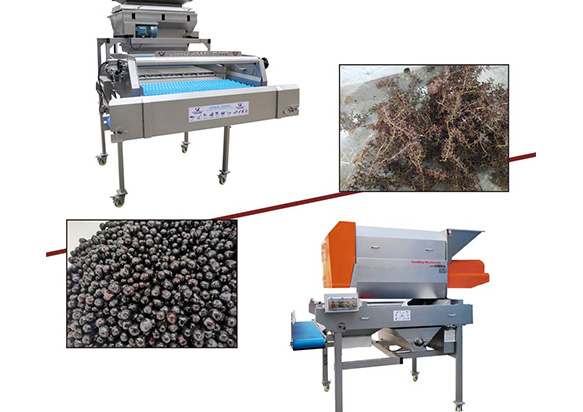

Grape Destemmer

Double Screw Grape Crusher

Destemmed grapes are fed into the Double Screw Grape Crusher, the core equipment for juice extraction. This equipment uses a low-speed squeezing principle with adjustable pressure and gaps, efficiently separating juice from skins and seeds while ensuring juice clarity. All contact parts are made of SUS304 stainless steel. It is suitable not only for fresh grapes but also for fermented grape mash.

Double Screw Grape Crusher

Crusher destemmer extruding the grape juice pulp and stems

Subsequent Processing and Sterilization System

• Filtration and Clarification: Pressed juice contains pomace and requires fine filtration using plate-and-frame filters or diatomaceous earth filters. For products needing long-term stability, our process includes a gelatin-tannin clarification method, allowing sedimentation at 8-12°C to eventually obtain bright, clear juice.
• UHT Sterilizer: To preserve the fresh nutrients of the juice, we recommend using a plate UHT sterilizer for high-temperature short-time sterilization (e.g., 90°C for 30 seconds), followed by rapid cooling before filling.
• Aseptic Filling: Options include hot filling (85°C) or aseptic cold filling, ensuring the product is sealed under sterile conditions to extend shelf life.

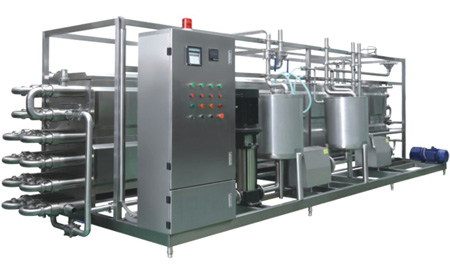

UHT Sterilizer

Technical Parameters

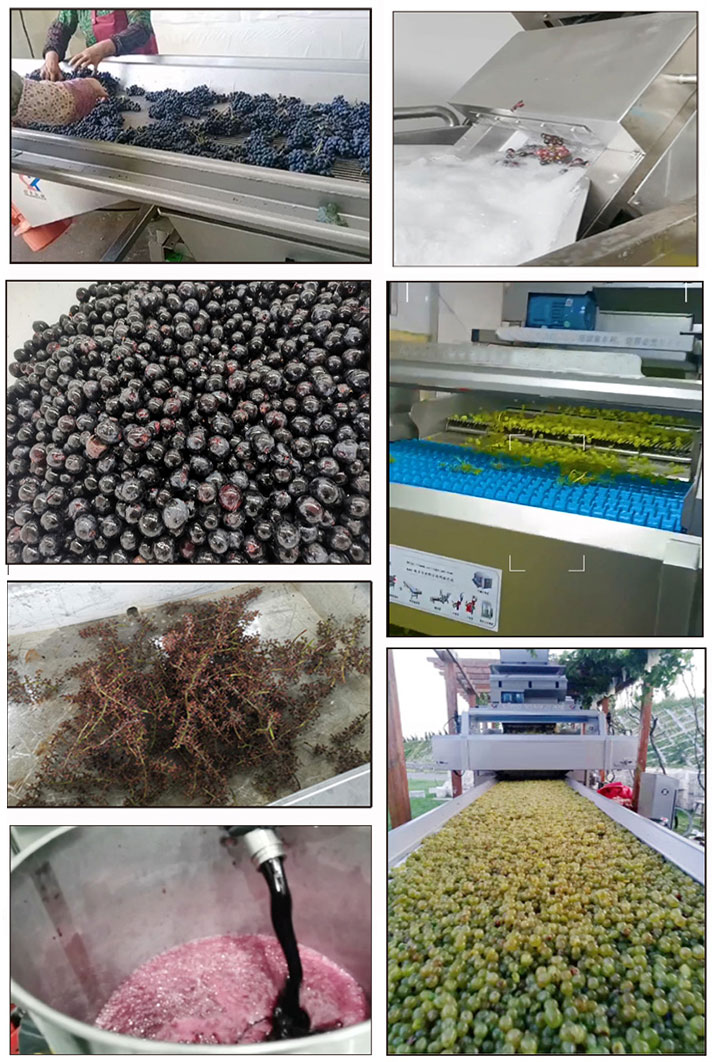

Advantages of the AGICO Grape Fruit Juice Production Line

• Integrated Planning: From feeding and cleaning to filling, all equipment is designed and commissioned by us, ensuring capacity matching and stable operation.
• Superior Materials: All parts in contact with juice are made from food-grade stainless steel or polymer materials, eliminating heavy metal contamination.
• High Capacity: The entire line operates automatically, offering high throughput and speed. Standard processing capacities cover 3-5 T/H, 5-10 T/H, and 10-15 T/H, meeting the needs of small workshops to large-scale processing plants.
• Practice-Proven Technology: Our process parameters (such as clarifying agent ratios, sterilization times) are based on extensive practical experience and scientific research, ensuring you can quickly produce high-quality products after commissioning.

AGICO Case

Why Choose AGICO?

AGICO is not just an equipment manufacturer; we are your process partner. We provide:

• Pre-Sales Consultation: Recommend the optimal process route based on your raw material characteristics, capacity requirements, and target market.
• Installation and Commissioning: Dispatch professional engineers to guide installation until the production line operates normally.
• After-Sales Support: Provide operator training, long-term spare parts supply, and technical upgrade services.
